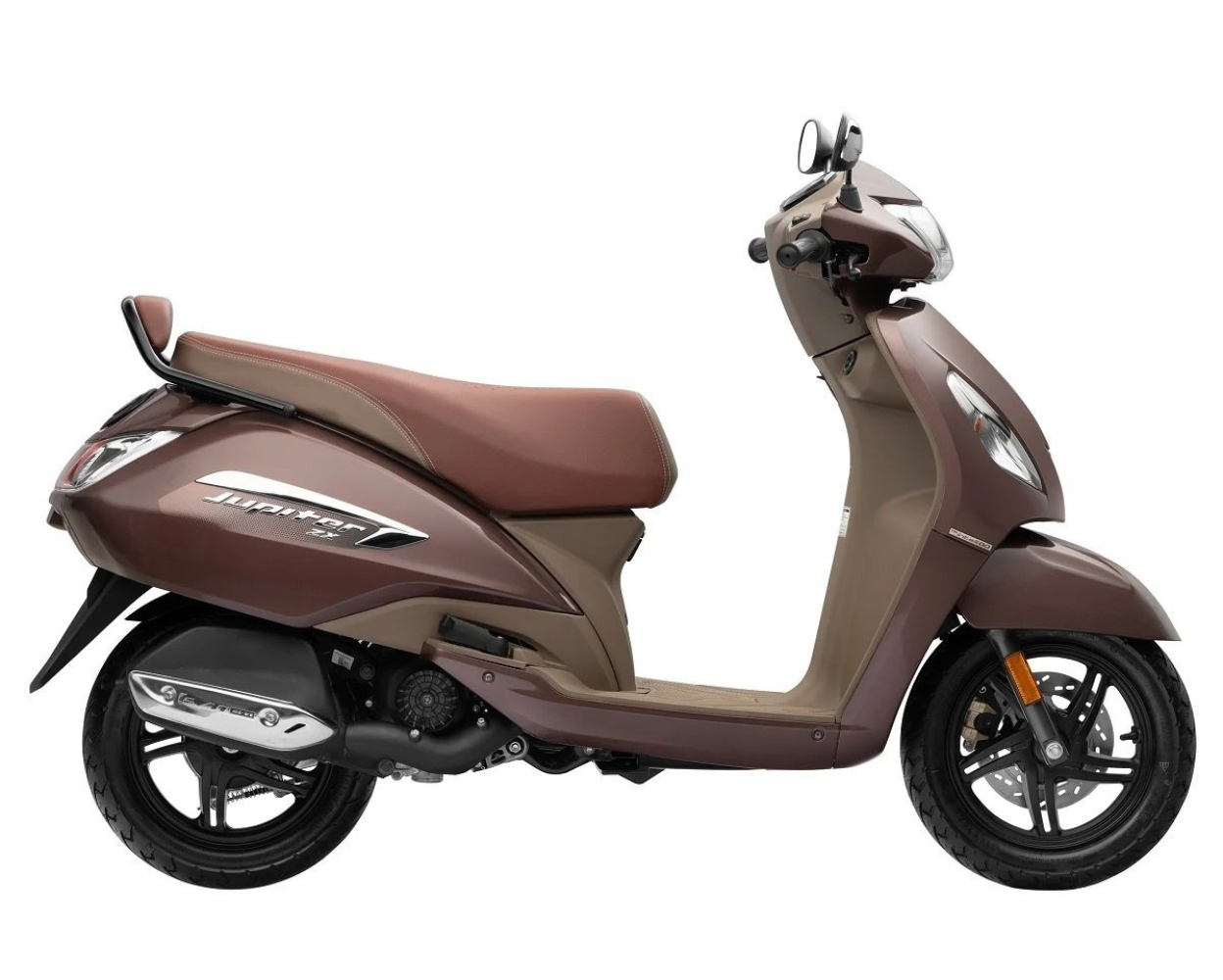

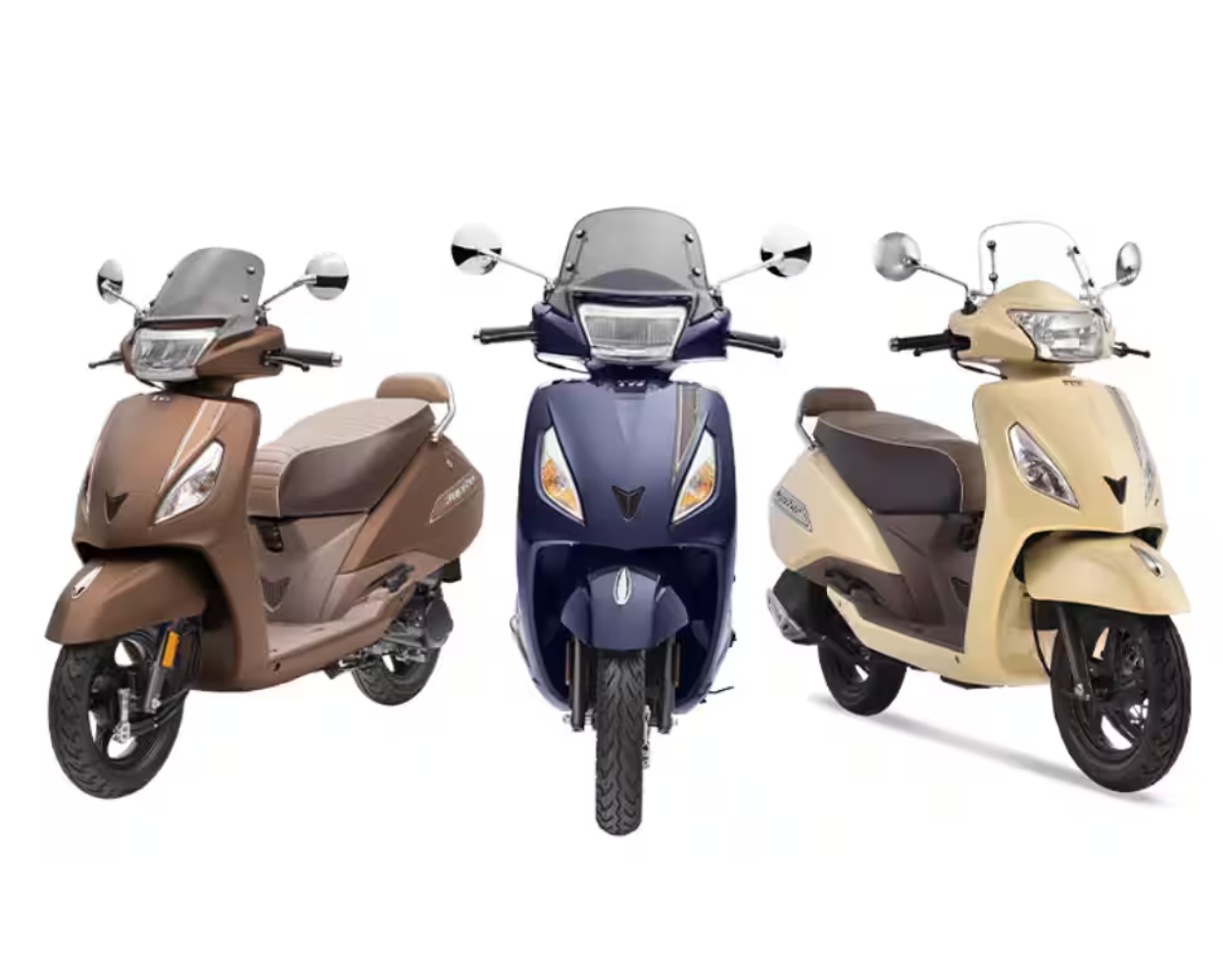

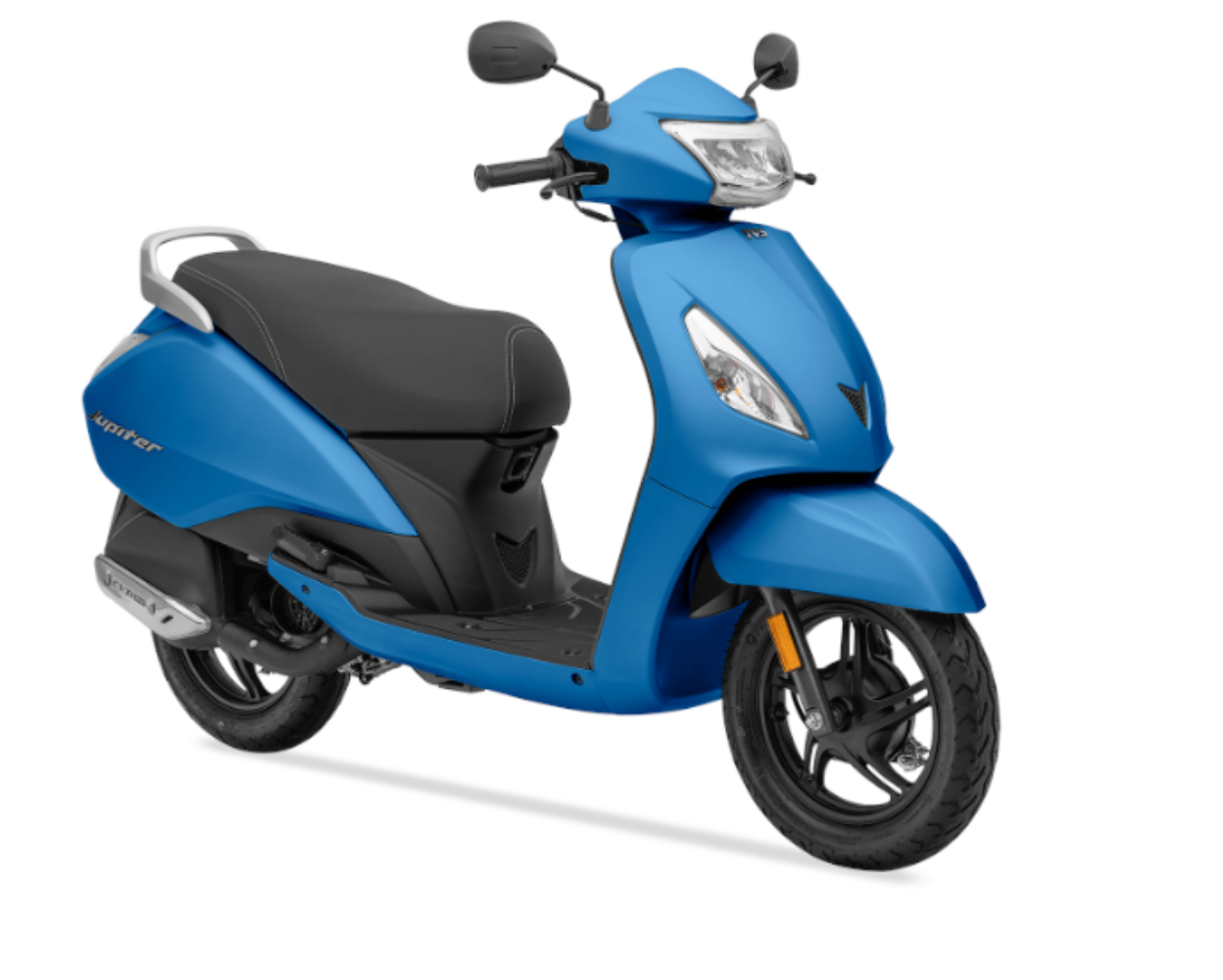

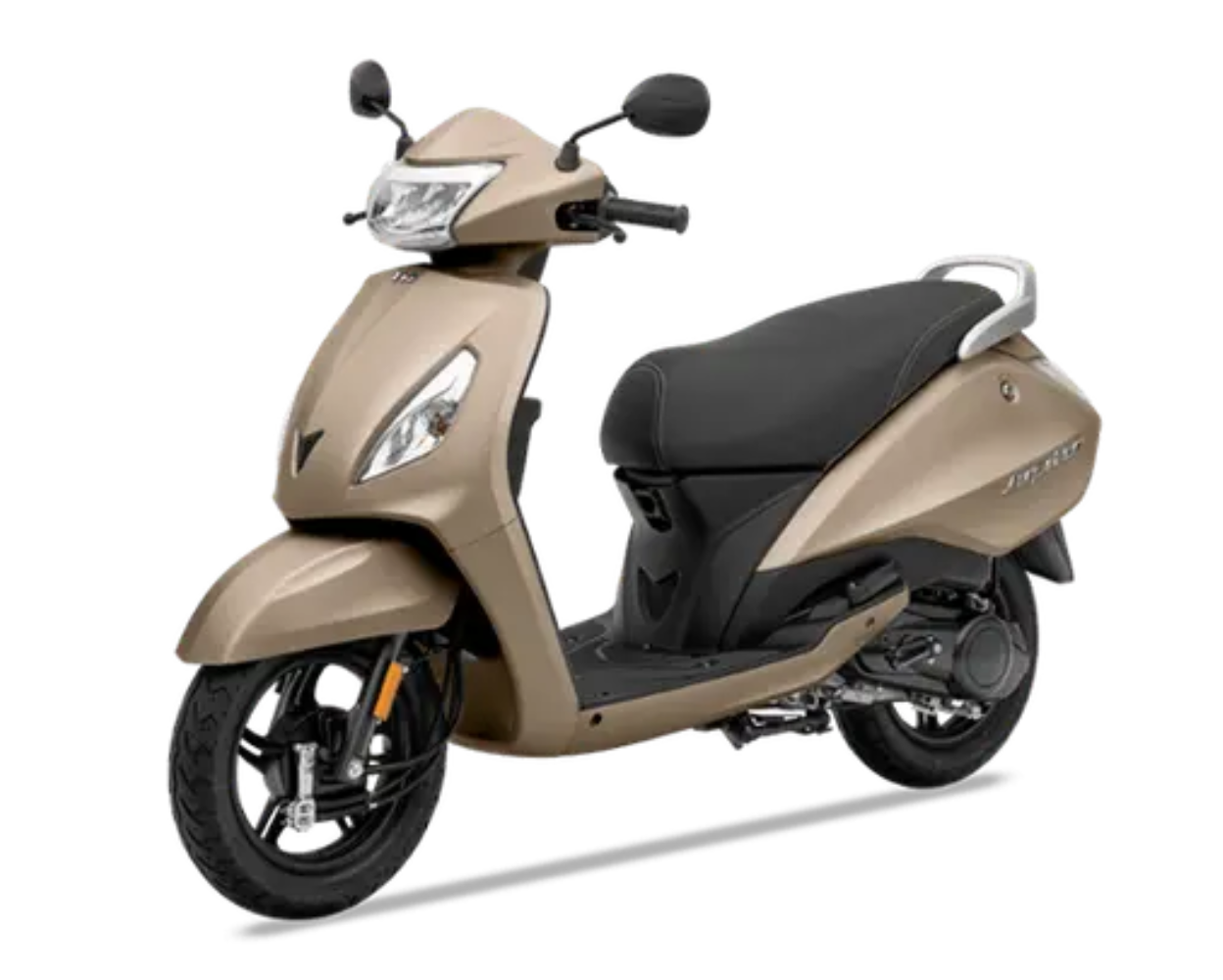

TVS Jupiter Scooter
110 cc | 7.8 bhp | 108 kgs
| TVS RADEON | |
|---|---|
| Color | Available In Many Colors |
| Type | Single cylinder, 4 stroke, CVTi, fuel injection |
| Displacement | 109.7 cc |
| Bore x Stroke | 53.5 x 48.8 mm |
| Air Filter Type | Viscous Paper Filter |
Technical Specification
| Engine & Performance | |
|---|---|
| Maximum Power | 5.5 kW @ 7000 rpm |
| Maximum Torque | 8.4 Nm @ 5500 rpm |
| Transmission Type | CVT Automatic |
| Starting System | Kick and Electric Starter |
| Ignition | ECU Controlled Ignition |
| Battery | 12V, 4Ah MF battery |
| Headlamp & Taillamp | LED |
| Frame | High Rigidity Underbone Type |
| Dimensions (l x b x h) | 1834 x 678 x 1286 mm |
| Wheelbase | 1275 mm |
| Ground Clearance | 150 mm (unladen) |
| Kerb Weight | 109 kg |
| Wheels | Alloy |
| Front Suspension | Telescopic Hydraulic |
| Rear Suspension | 3 Step Adjustable Type Coil Spring with Hydraulic Damper |
| Front | 130 mm Drum (SBT) |
| Rear | 130 mm Drum (SBT) |
| Tyre Size (Front & Rear) | 90/90-12 54 J (Tubeless) |
